Matches most EVs exactly
The majority of electric cars cap their onboard AC charging at 11kW. This meets that ceiling without paying for headroom the vehicle can't use.
AC Home Charger

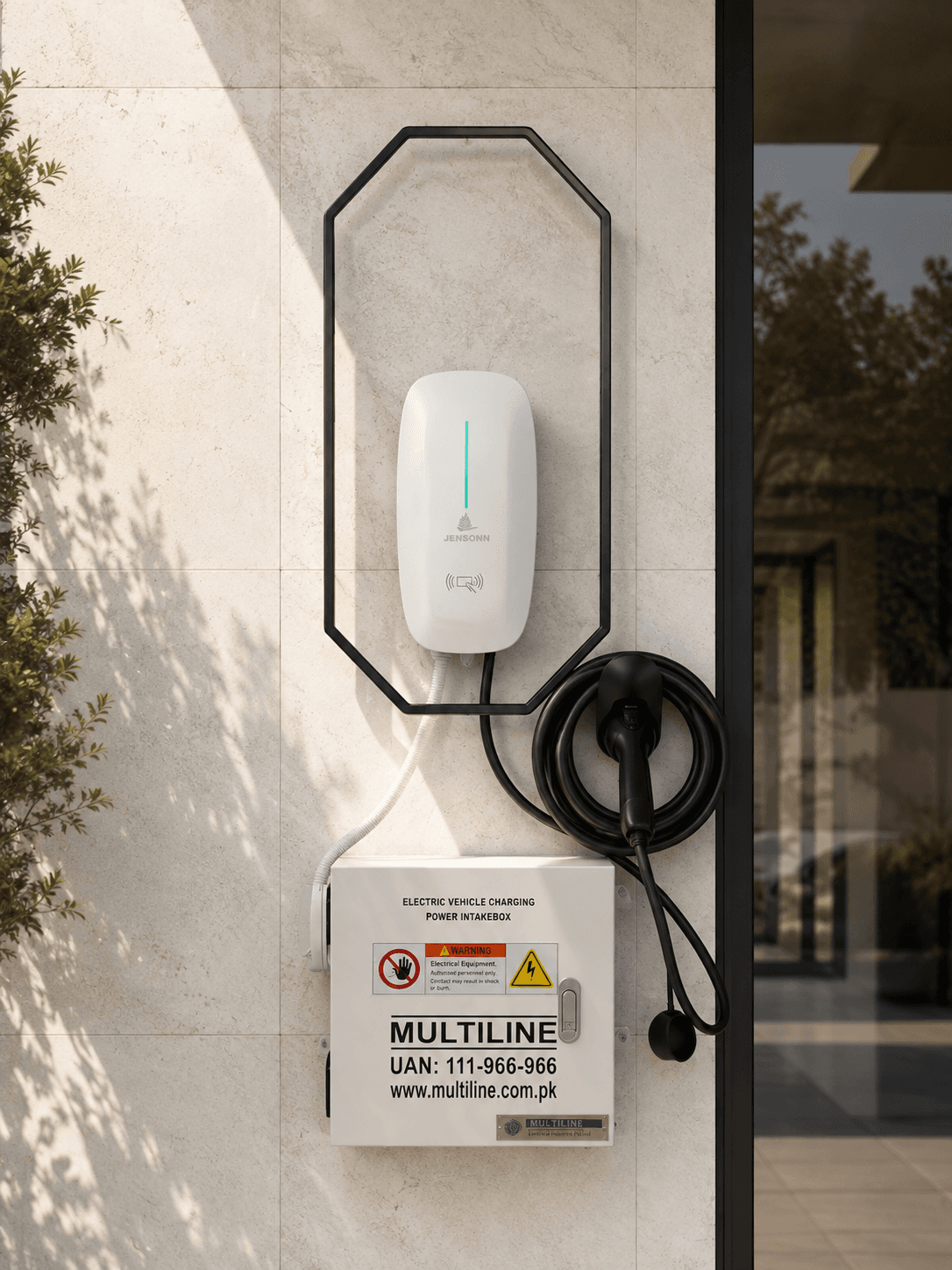

11kW Home Charger
Three-phase charging for homes and offices with a 400V connection. Roughly half the charging time of a single-phase unit, with a screen and 4G on board.
From PKR 150,000excl. PIB, installation and tax
When the supply allows, this is the one.
If your property has a three-phase 400V connection — common in larger homes, offices and commercial buildings — the 11kW charger delivers the full AC charging speed most electric vehicles are designed to accept. Anything faster is wasted on the car; anything slower leaves capability on the table. It draws 16A per phase, so the supply requirement is modest for the output.
4.3-inch display
Live voltage, current, power and session energy on the unit itself — not buried in an app you have to open to check whether it's charging.
Connected three ways
Bluetooth, Wi-Fi and 4G, so the charger stays reachable even where home internet doesn't reach the garage.
- Output
- 11 kW
- Supply
- Three-phase 400V
- Current
- 16 A
- Display
- 4.3 inch
Specifications.
- Rated output
- 11 kW
- Operating voltage
- 400 Vac ± 15%
- Rated current
- 16 A
- Connector
- Type 2
- Leakage protection
- Type A / A+DC 6mA
- Communication
- Bluetooth / Wi-Fi / 4G
- Interface
- 4.3" display + RFID reader
- Dimensions
- 186 × 354 × 111 mm
- Operating frequency
- 50 Hz
- Enclosure rating
- IP65
- Operating temperature
- -25°C to +50°C
- Storage temperature
- -40°C to +60°C
- Cooling
- Natural
- Over-voltage protection
- ≥ 265V
- Under-voltage protection
- ≤ 175V
- Over-current protection
- ≥ 110% rated output
- Over-temperature
- 80°C cut-off, 60°C recovery
- Installation
- Wall-mounted or pedestal
- Standards
- IEC 61851-1, IEC 62196-2
Figures from the manufacturer's datasheet. Download the full specification below.
Built for the way power works here.
Protected against unstable supply
Cuts out above 265V and below 175V, with over-current protection at 110% of rated output. Built for a grid that doesn't always behave.
Lightning and earth protection
Surge protection, ground fault protection and relay bonding detection are built into the unit rather than left to the distribution board.
IP65 enclosure
Sealed against dust and water jets — a step above the IP54 rating most imported wallboxes carry, and it matters on an outdoor wall in monsoon season.
Thermal cut-off
Monitors its own temperature and stops at 80°C, resuming at 60°C. Rated for ambient temperatures from -25°C to +50°C.
Which cars this charger suits.
Every vehicle below works with the 11kW Home Charger. A car only ever draws what its onboard charger can accept — 4 of these take the full 11 kW.
| Vehicle | Accepts | Charges at |
|---|---|---|
| Audi e-tron | 11 kW | 11 kW |
| BMW iX | 11 kW | 11 kW |
| BYD Seal | 11 kW | 11 kW |
| KIA EV5 | 11 kW | 11 kW |
| BYD Atto 3 | 7 kW | 7 kW(vehicle limit) |
Car not listed? Ask us
Technical documents.
Ready for a quote?
Tell us where it's going and we'll confirm your supply, then quote the full installed price.
